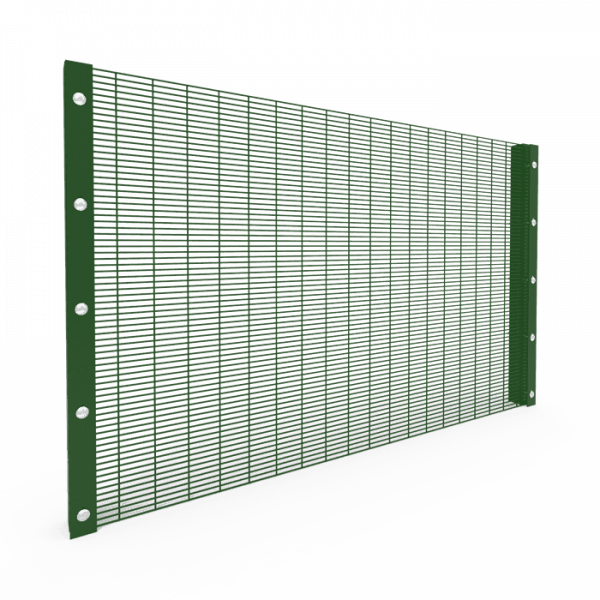

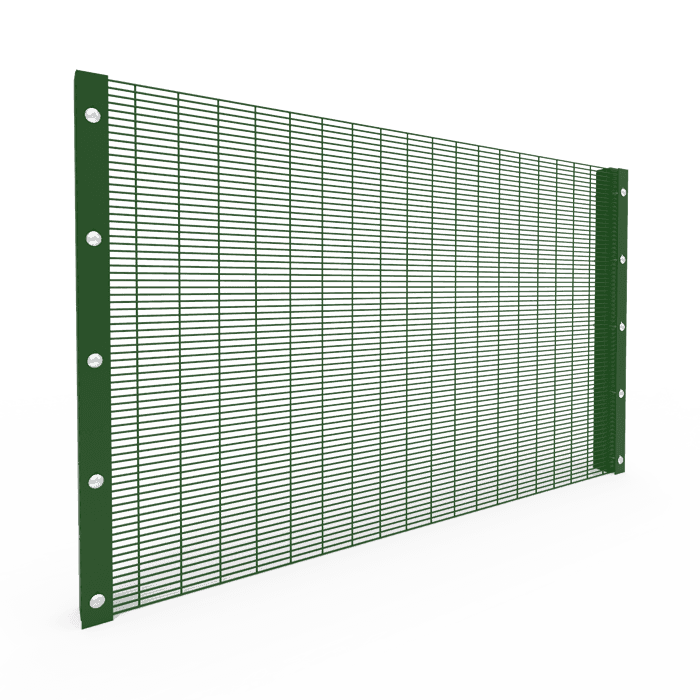

358 High Security Fence – Perfect for Access Control Applications
358 high security fence, also known as anti-climb fence, is a kind of superior high tensile and high security welded wire mesh fence. The fence name 358 comes from its panel with a mesh opening of 3″ × 0.5″ and a wire diameter of 8-gauge (approximate to 76.2 mm × 12.7 mm × 4 mm). It is deigned to be a robust, anti-climb and anti-cut barrier to provide high security protection. The mesh opening is so small, you can even put your finger on it, which makes it is almost impossible to be climbed and cut. Meanwhile, the 8-gauge wire is strong enough to form a rigid structure, which make it is extremely perfect to secure your property and realize effective access control. It is hugely flexible for a wide range of high security locations, including but not limited to, schools, industrial and commercial sites, police stations, prisons, government agencies, airports, railways and seaports, etc.
Description
- Small mesh opening offers no footholds for climbing.
- Panel wires are firmly welded at every intersection and provide a solid and robust structure.
- Solid welding joints, small mesh opening, together with thick wire diameter make the mesh is hard to be cut by hand or powered tools.
- Galvanized and powder coating treatments offers excellent rust, corrosion and weather resistance performances.
- It can be cooperated with barbed wires and razor wires to offer higher security.
Anti-climb performance
Anti-cut performance
Specification
A> Height:1200–2500 mm
B> Width:2000–3100 mm
C> Wire Diameter:3.2 mm (10 gauge), 4.0 mm (8 gauge)
D> Mesh Opening:12.7 × 76.2 mm (0.5″ × 3″)
E> Clamp:metal clamp/tension bar covered
F> Post:square post (60 × 60 × 2.0/2.5/3.0 mm, 80 × 80 × 2.0/2.5/3.0 mm);
Rectangular post (40 × 60 × 2.0/2.5/3.0 mm, 40 × 80 × 2.0/2.5/3.0 mm, 60 × 80 × 2.0/2.5/3.0 mm, 80 × 100 × 2.0/2.5/3.0 mm)
G> Post Cap:metal rain cap / anti-UV Plastic cap
Notes:
- 3510 high security fence is also available. 3510 high security fence has the same mesh opening as the 358 high security fence, the only difference is the wire diameter is 10-gauge instead of 8-gauge.
- All colors are available in Ral;
- Other materials and specifications are available upon request.
Category
Structure
According to the shape of structure, our 358 high security fences can be divided into two types as shown below.

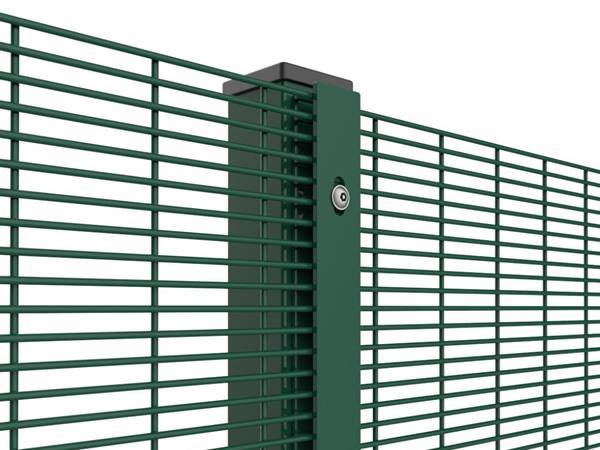

2D 358 high security fence

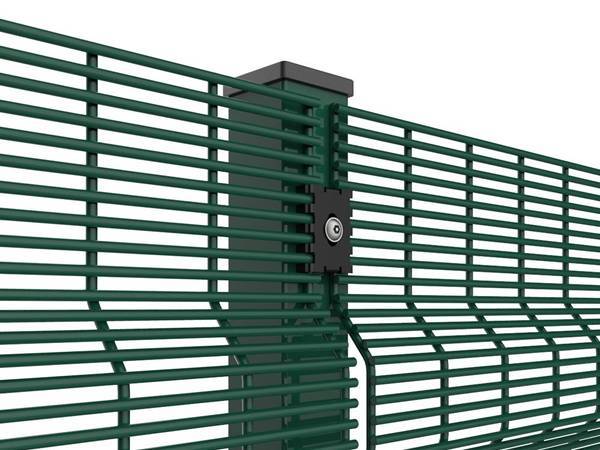

3D 358 high security fence
Surface Treatment
According to the surface treatment, our 358 high security fence can be divided into two types as shown below.

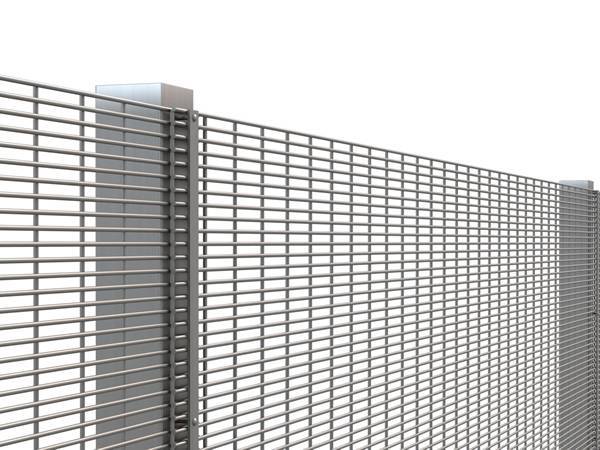

Galvanized 358 high security fence

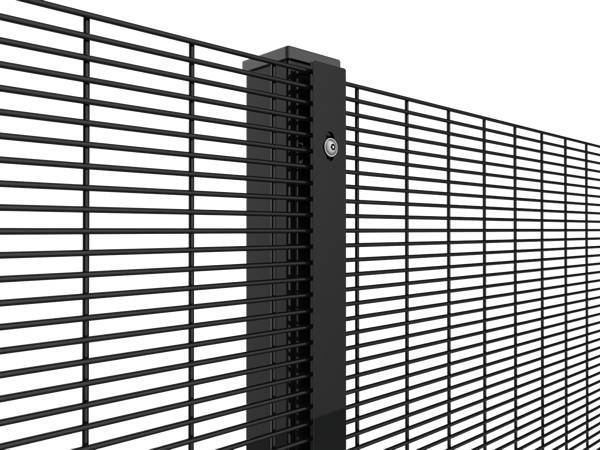

Powder coating 358 high security fence
Components & Accessories
The main components and connection methods of our 358 high security fence are as shown below.

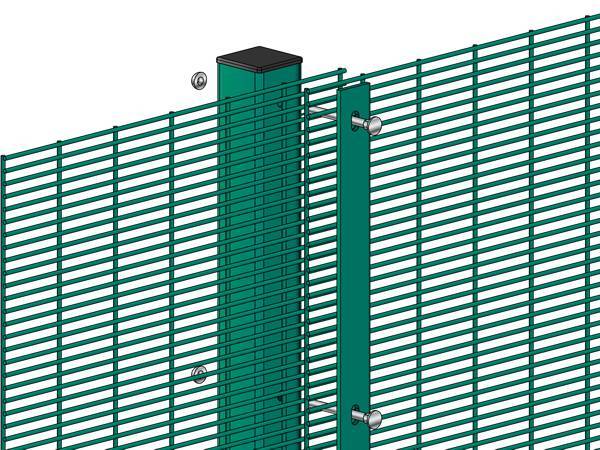

Clamp bar connection

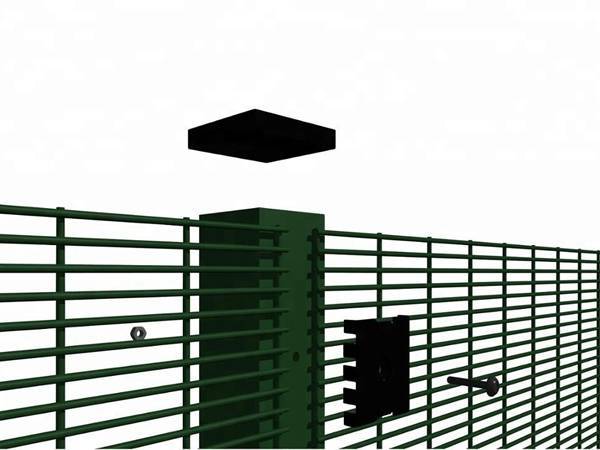

Spider clip connection
Optional Accessories

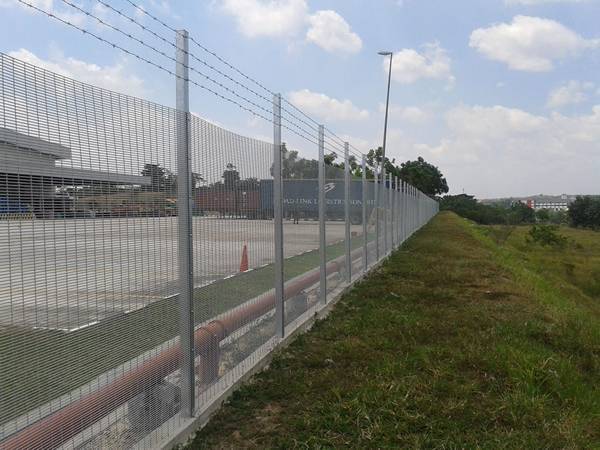

Barbed wires

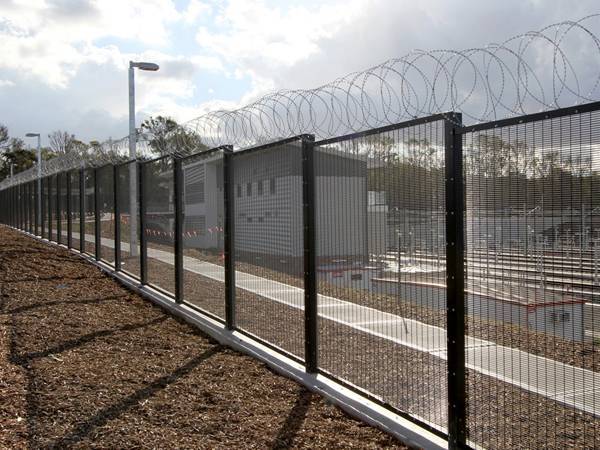

Razor wire

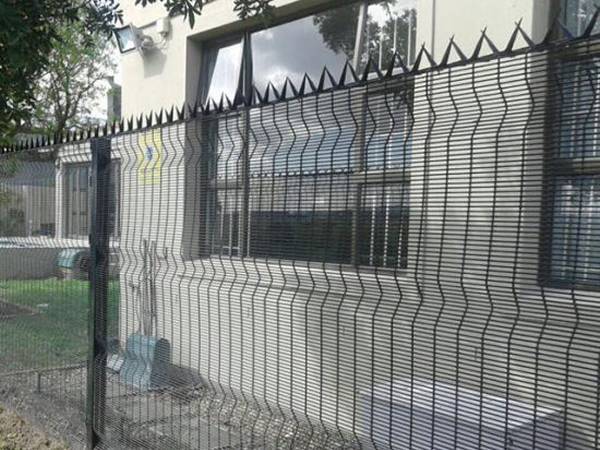

Wall spikes

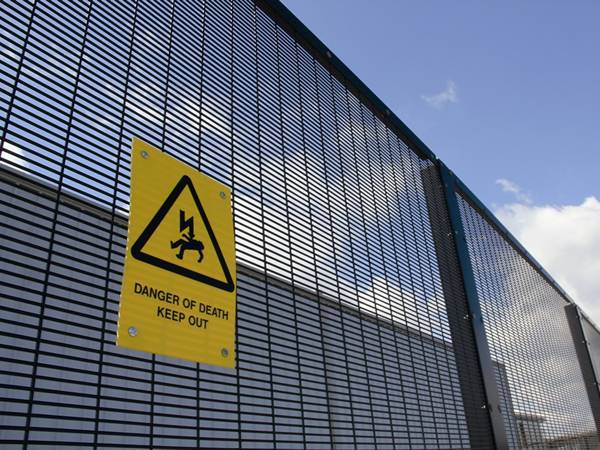

Warning signs
Gallery

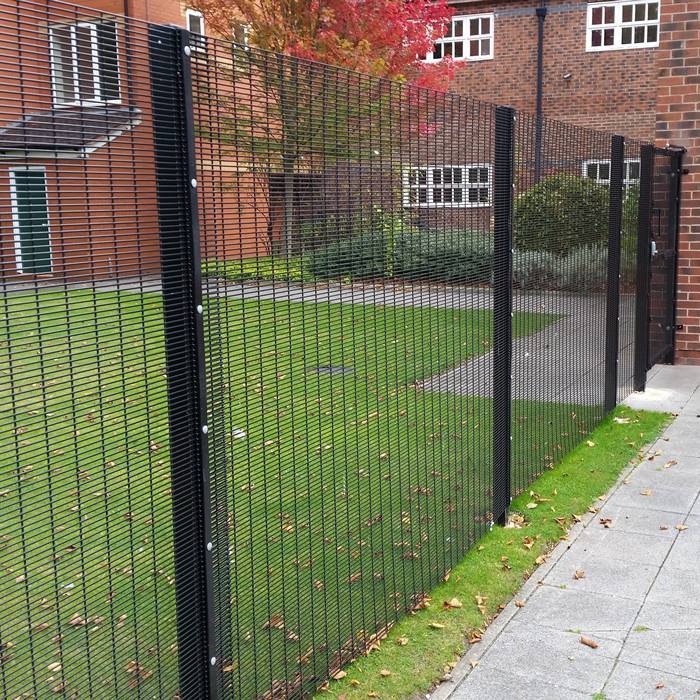

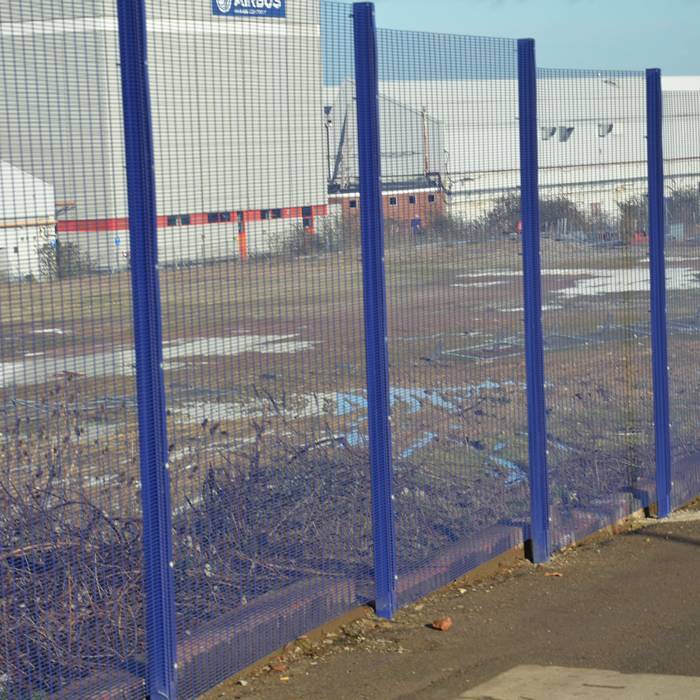

Our 358 high security fence is hugely flexible for a wide range of high security locations, including but not limited to, schools, industrial and commercial sites, police stations, prisons, government agencies, airports, railways and seaports, etc.
