Perfect Curvy Welded Fence for Airports, Parks, Schools & Sports Fields

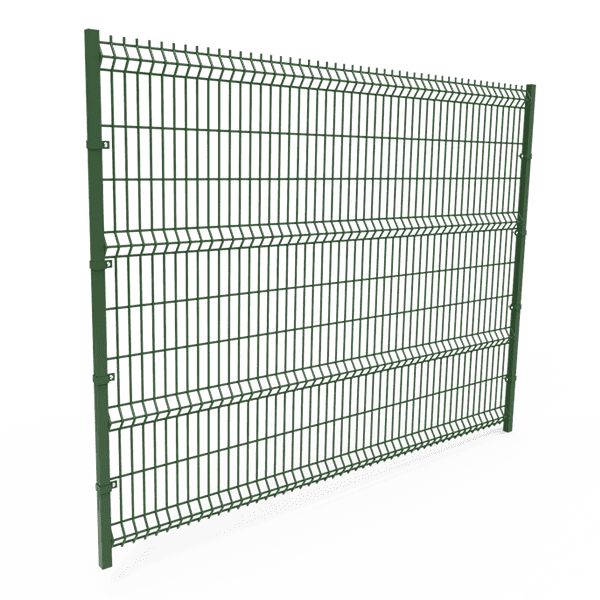

Curvy welded fence, also known as 3D security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction. It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies. Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.

Category:

Description

  • Beautiful appearance. Its unique bending curves make it have an authentic 3D outlook compared with other fence panels.
  • Ridge structure. Its bending curves not only offer a beautiful surface but also strengthen its rigidity.
  • Cost effective. It provides a competitive price while maintaining high quality, rigidity and long life service.
  • Corrosion resistance & weatherproof performance. Its galvanized and powder coating surface give excellent rust & corrosion resistance to withstand various harsh environment conditions.
  • Long service life. The galvanized and powder coating treatment allows the curvy welded fence working properly for 10 years.
  • Less maintenance. It has a solid structure, so it will not damage easily. Besides, its excellent corrosion resistance and weatherproof performances keep it work properly under harsh environments and extend its maintenance period.

Specification

A> Height:630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm

B> Width:2000 mm, 2500 mm, 2900 mm

C> Wire Diameter:3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm

D> Mesh Opening:50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc.

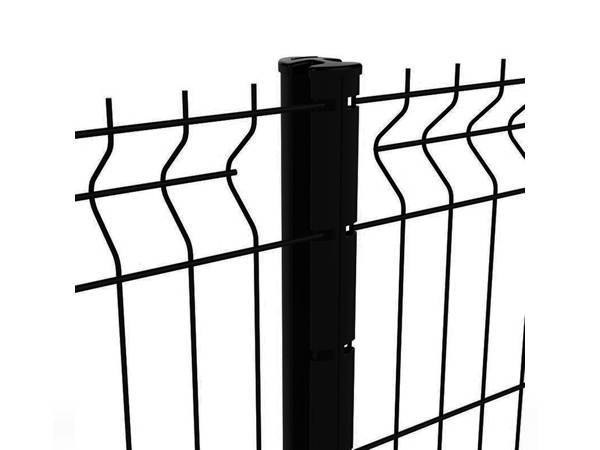

E> Clamp:metal clamp / anti-UV plastic clamp / no clamp (for peach post)

F> Post:Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

G> Post Cap:metal cap/anti-UV plastic cap

Notes:

  • All colors are available in Ral;
  • Other materials and specifications are available upon request.

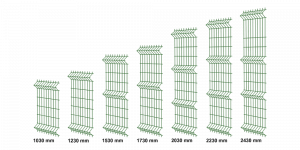

  • If the fence height falls between 630 mm and 1430 mm, it will have 2 folds; if the fence height falls between 1530 mm and 1930 mm, it will have 3 folds; if the fence height falls between 2030 and 2430, it will have 4 folds as shown below.

Relations between fence height and the number of folds

Category

Surface Treatment

Galvanized curvy welded fence

Powder coating curvy welded fence

Components & Accessories

The main component of Australia temporary fence is welded fence panels, panel clamps and plastic feet as shown below.

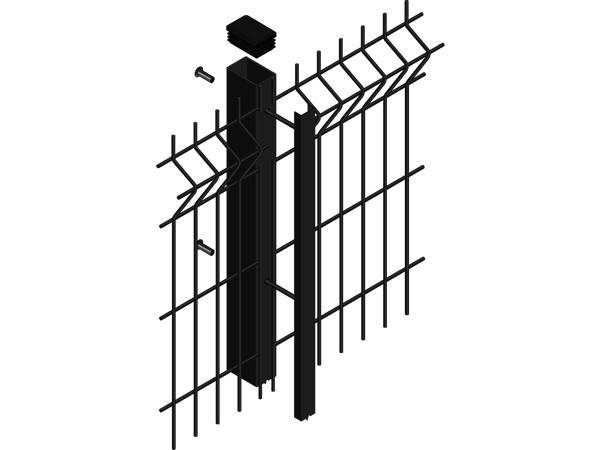

Clamp bar connection

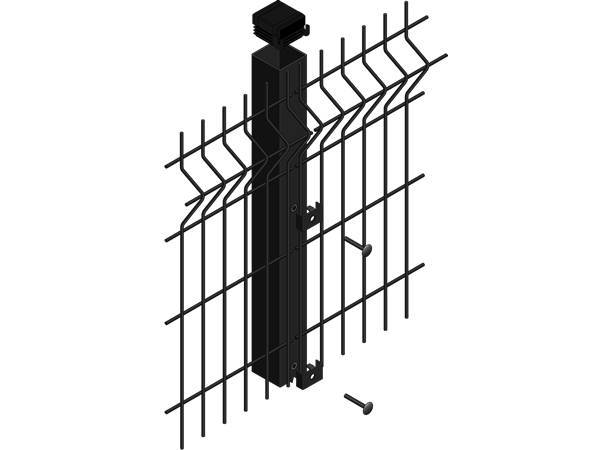

Metal clamp connection

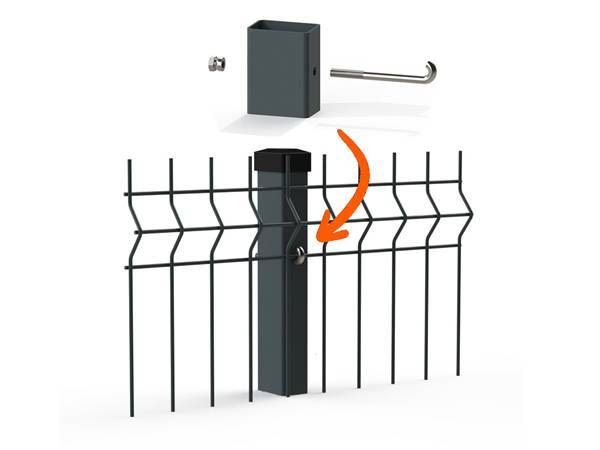

J bolt connection

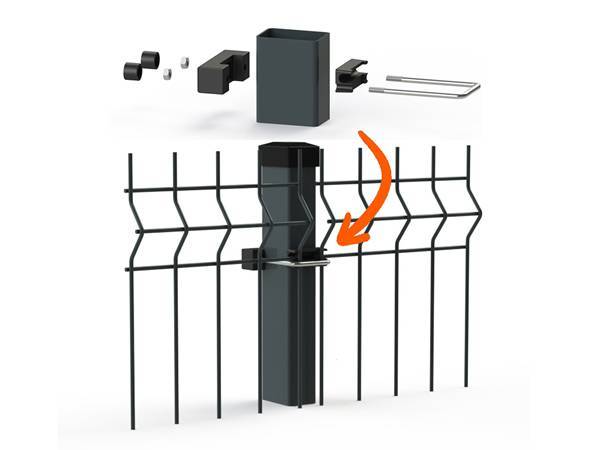

U bolt connection

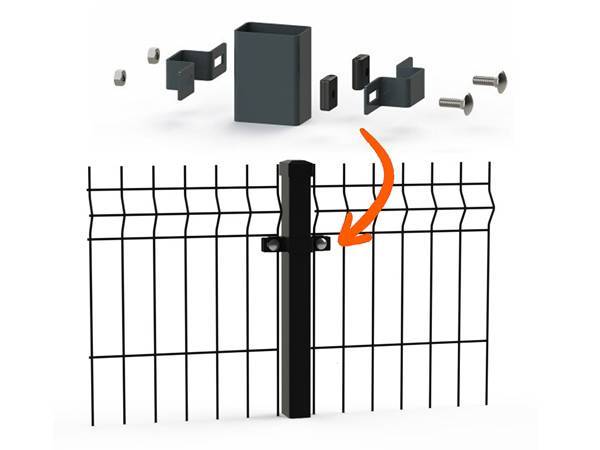

Square clamp connection

Square clamp connection

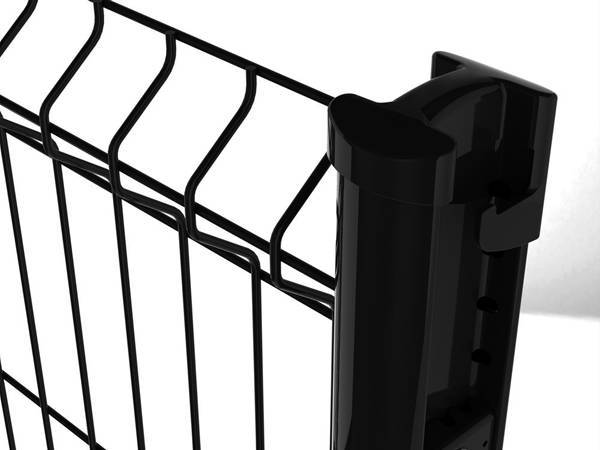

I post connection

Optional Accessories

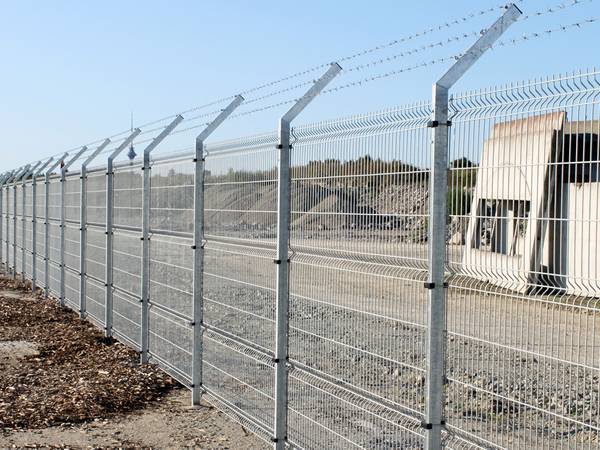

Barbed wire

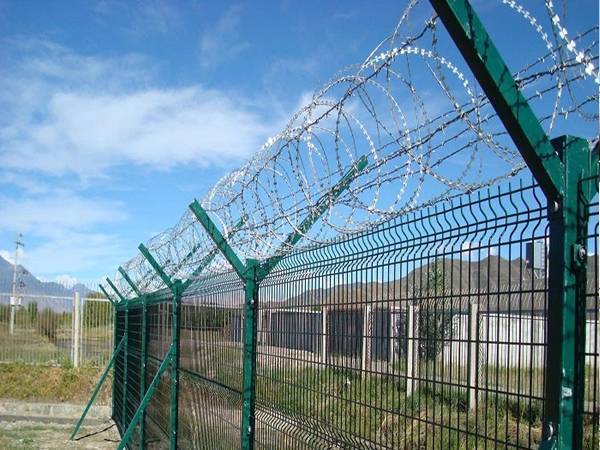

Razor wire

Gallery

Crowd control barrier is widely used in construction sites and many public events, including but not limited to, sports events, concerts, parades, political rallies, demonstrations and outdoor festivals.
