Fixed Knot Deer Fence for Livestock

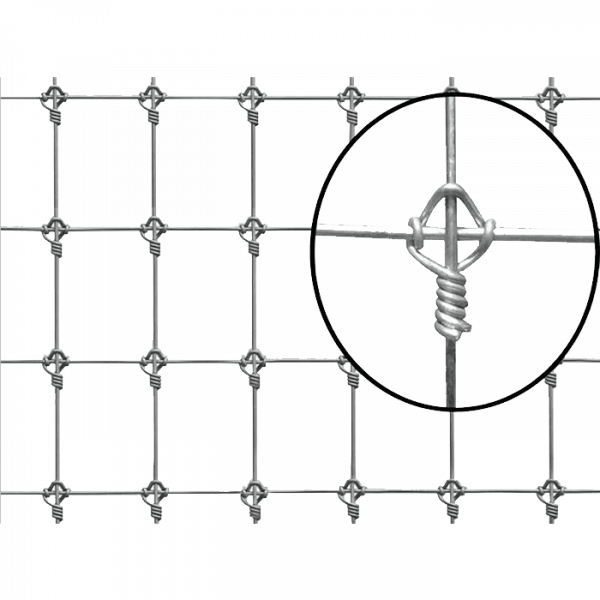

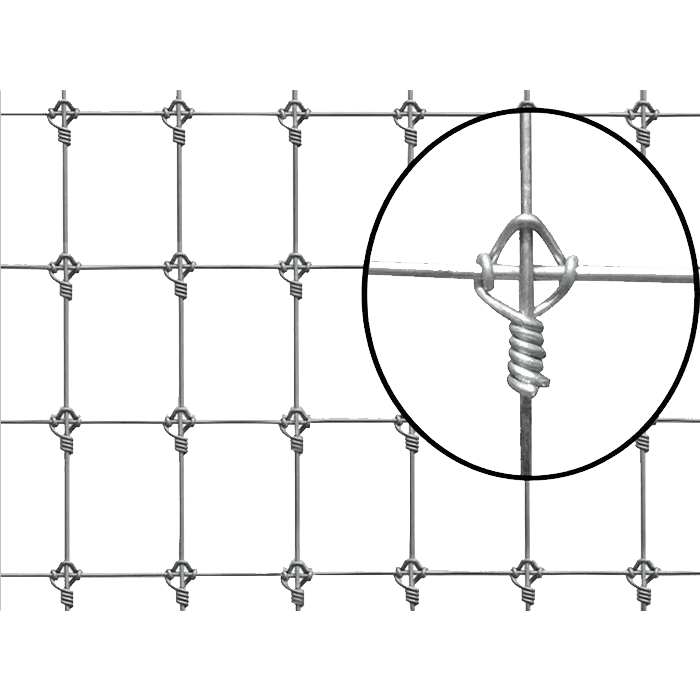

The fixed knot fence is a wire-type woven wire mesh fence with high-strength carbon steel wire, which is similar with hinge joint field fence. The solid structure fence adopts a solid lock structure, which is mainly used for the wild outer fence to protect deer, horse, cow, sheep, goat and other cattle. Prairie fences and farm fences. This type of field fence has stronger fabrics and can be installed quickly with fewer fence posts. This means that field fencing with fixed knots brings reduced cost and less maintenance compared with other wire fences.
Description
- The most economical and commonly used field fence type.
- Smooth surface protect animals from being damaged.
- Different height options for different animals.
- Different horizontal wire spacing for different growth period.
- Different vertical wire spacing for different tensile strength.
- Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.
Specification
- Material: high quality high carbon steel wire, low carbon steel wire.
- Surface treatment
- Class A: Electro galvanized fixed knot joint fencing (zinc coated: 15 g/m2)
- Class B: Hot dipped galvanized fixed knot joint fencing (zinc coated:30–50 g/m²)
- Class C: Heavy hot dipped galvanized fixed knot joint fencing (zinc coated:220–280 g/m²)
- Height range: from 0.6 m to 2.45 m. Common is 1.2 m, 1.5 m and 1.8 m
- Knot type: fixed knot type
- Line wire diameter: 1.6/2.0/2.5/3.0 mm
- Top and bottom wire diameter: 2.0/2.5/3.0/3.7 mm
- Wire diameter and tensile strength
- horizontal wires: diameter 2.5 mm, tensile strength 1100–1300 N/mm²
- vertical wires: diameter 2.5 mm, tensile strength 600–850 N/mm²
- knot wires: diameter 2.2 mm, tensile strength 400–525 N/mm²
| Item | Horizontal Wire Number | Inside Wire Gauge | Top & Bottom Wire Gauge | Stay Spacing | Fence Height |
|---|---|---|---|---|---|
| FKF-1 | 23 | 12.5 | 10.5 | 3″, 6″ or 12″ | 120″ |
| FKF-2 | 20 | 12.5 | 10.5 | 3″, 6″ or 12″ | 96″ |
| FKF-3 | 17 | 12.5 | 10.5 | 3″, 6″ or 12″ | 75″ |
| FKF-4 | 15 | 12.5 | 10.5 | 3″, 6″ or 12″ | 61″ |
| FKF-5 | 13 | 12.5 | 10.5 | 3″, 6″ or 12″ | 74″ |
| FKF-6 | 13 | 12.5 | 12.5 | 3″, 6″ or 12″ | 48″ |
| FKF-7 | 9 | 12.5 | 12.5 | 3″, 6″ or 12″ | 49″ |
| FKF-8 | 16 | 12.5 | 12.5 | 3″, 6″ or 12″ | 90″ |
| FKF-9 | 14 | 12.5 | 12.5 | 3″, 6″ or 12″ | 78″ |
| FKF-10 | 10 | 12.5 | 12.5 | 3″, 6″ or 12″ | 47″ |
| FKF-11 | 17 | 12.5 | 12.5 | 3″, 6″ or 12″ | 74″ |
| FKF-12 | 13 | 12.5 | 12.5 | 3″, 6″ or 12″ | 74″ |
| FKF-13 | 11 | 12.5 | 12.5 | 3″, 6″ or 12″ | 60″ |
| FKF-14 | 8 | 12.5 | 12.5 | 3″, 6″ or 12″ | 36″ |
| FKF-15 | 8 | 12.5 | 12.5 | 3″, 6″ or 12″ | 31″ |
| FKF-16 | 7 | 12.5 | 12.5 | 3″, 6″ or 12″ | 36″ |
Category

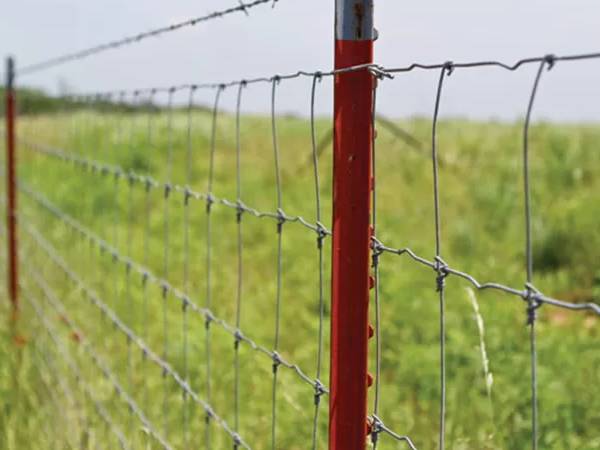

T posts

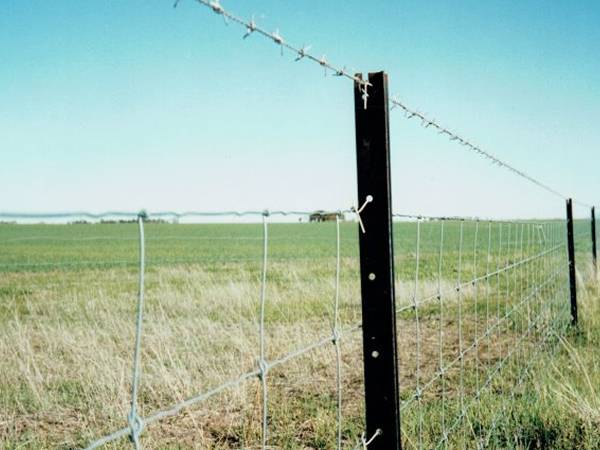

Y posts
