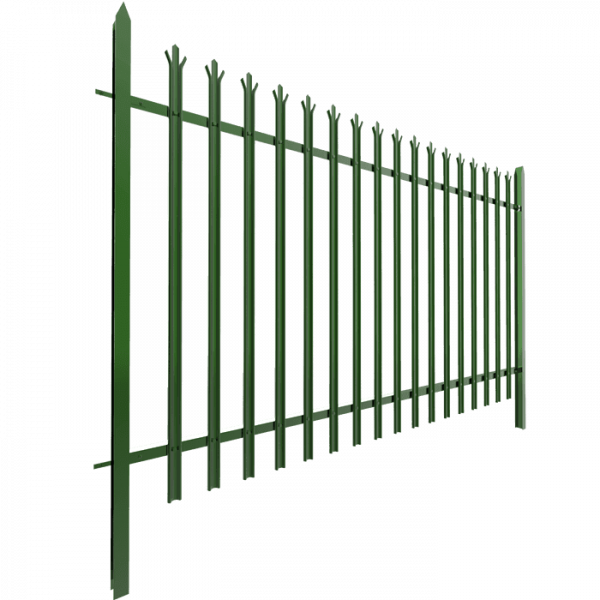

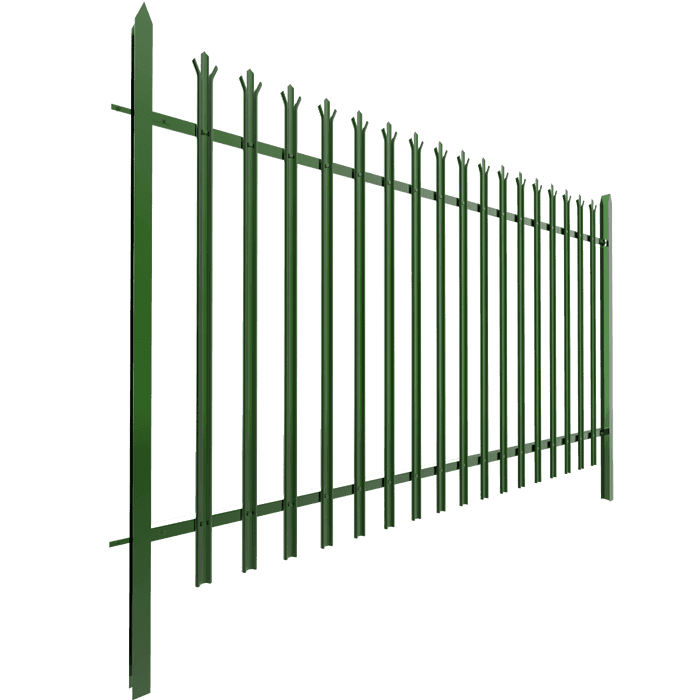

Palisade Fencing – Proving You A High Level of Security at Best Price

Palisade fencing is a high security fencing prevailing in Europe, Australia and South Africa markets. It is designed to be strong, durable and provide excellent protection against climbing and cutting through. Its imposing appearance, minimal foot holes and robust vertical steel pales ensure its excellent protection against unauthorized access, vandalism and attack. Besides, it is also a good alternative to high walls. Typically, it is widely used to address a wide range of perimeter security needs from general purpose to high security purpose and is widely used in various residential, commercial and industrial applications, including but not limited to, highways, airports, docks, schools, sports grounds, leisure facilities, etc.

Category:

Description

  • Providing a higher level of security and excellent protection against unauthorized access, vandalism and attack.
  • High tensile fixings and support base offer maximum resistance to deformation.
  • A wide range of designs and colors are available to perfectly match up with most surrounding.
  • Excellent corrosion & rust resistance and weather resistance performance.
  • Fast and easy installation and less maintenance.

Specification

AHeight:1800 mm, 2100 mm, 2400 mm, 3000 mm

BWidth:2750 mm

CPale Type:W-profile, D-profile and angle steel

DPale Top:square top, triple pointed top, single pointed top, round top, round & notch top, etc.

EPale Thickness:1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm

FHorizontal Rail:angle steel (40 mm × 40 mm × 4 mm, 50 mm × 50 mm × 5 mm, 50 mm × 50 mm × 6 mm)

GPost:square post (60 mm × 60 mm, 80 mm × 80 mm, 100 × 100 mm); I post (100 × 55 mm)

HConnection:fish plate (40 mm × 8 mm × 150 mm)

Table 1 Specification of W-Section Type
Panel SizeW-Section Pale: 70 mmHorizontal RailPost
HeightWidthPale thicknessQty: PaleAngle SteelSquare PostI Post
1.8 m2.75 m2/2.5/3 mm17 pcs40 × 40 × 4 mm, 50× 50 × 6 mm60 × 60 mm, 80 × 80 mm, 100 × 100 mm100 × 55 mm
2.1 m2.75 m2/2.5/3 mm17 pcs
2.4 m2.75 m2/2.5/3 mm17 pcs
3.0 m2.75 m2/2.5/3/3.5 mm17 pcs
W-section Pale: 62 mm
1.8 m2.75 m1.5/2/2.5 mm17 pcs40 × 40 × 4 mm, 50× 50 × 6 mm60 × 60 mm, 80 × 80 mm, 100 × 100 mm100 × 55 mm
2.1 m2.75 m1.5/2/2.5 mm17 pcs
2.4 m2.75 m1.5/2/2.5 mm17 pcs
3.0 m2.75 m1.5/2/2.5 mm17 pcs
Table 2 Specification of D-Section Type
Panel SizeD-Section Pale: 65 mmHorizontal RailPost
HeightWidthPale thicknessQty: PaleAngle SteelSquare PostI Post
1.8 m2.75 m1.5/2/2.5/3 mm17 pcs40 × 40 × 4 mm, 50× 50 × 5 mm60 × 60 mm, 80 × 80 mm, 100 × 100 mm100 × 55 mm
2.1 m2.75 m1.5/2/2.5/3 mm17 pcs
2.4 m2.75 m1.5/2/2.5/3 mm17 pcs
3.0 m2.75 m1.5/2/2.5/3 mm17 pcs

Notes:

  • All panel pales are provided in 17 pieces;
  • M8 × 30, M12 × 30 anti-vandal steel or stainless steel bolts are provided;
  • All colors are available in Ral;
  • Other materials and specifications are available upon request.

Category

Surface Treatment

We have both galvanized and powder coating palisade fencing for your choice. All RAL colors are available.

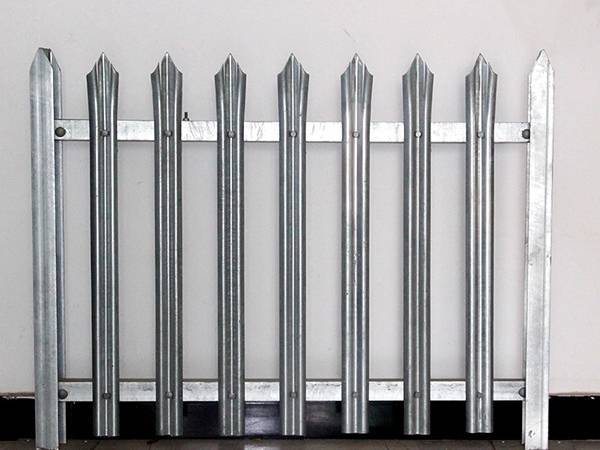

Galvanized

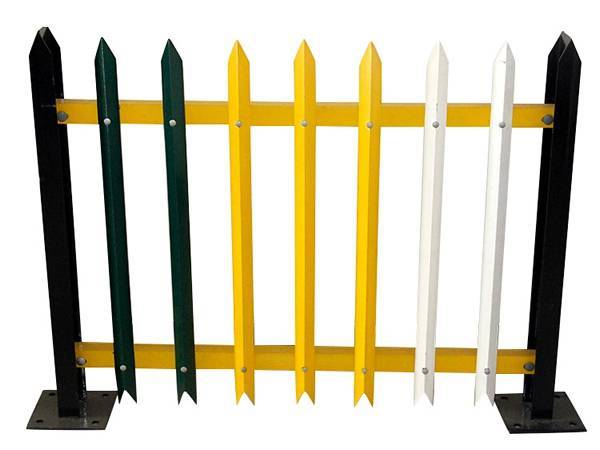

Powder coating

Pales

Our palisade fencing can be divided into three types by pale profile, namely, D-section pales, W-section pales and angle steel pales as listed below.

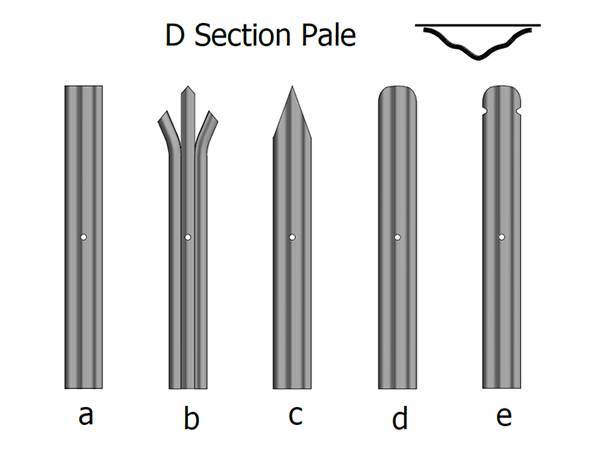

a. square top; b. triple pointed top; c. single pointed top; d. round top; e. round & notch top

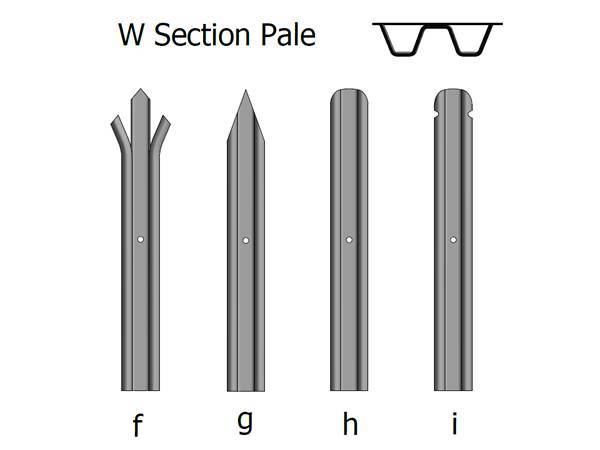

f. triple pointed top; g. single pointed top; h. round top; i. round & notch top

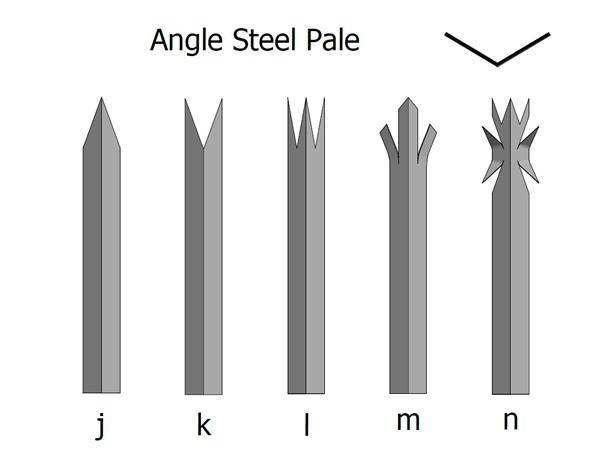

j. single pointed top; k. double pointed top; l. triple pointed top; m. triple pointed & splayed top; n. triple pointed & spikes top

Connection

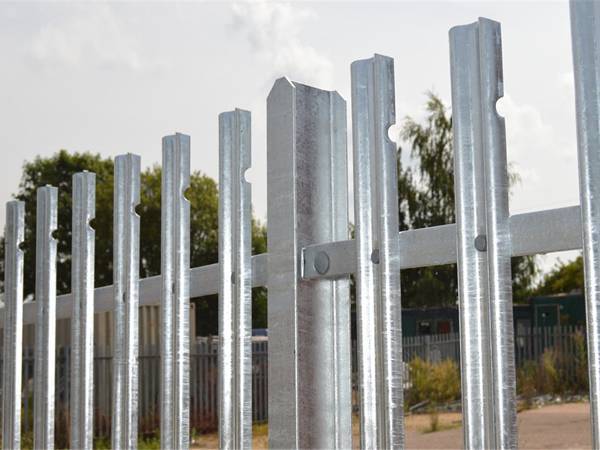

I post connection

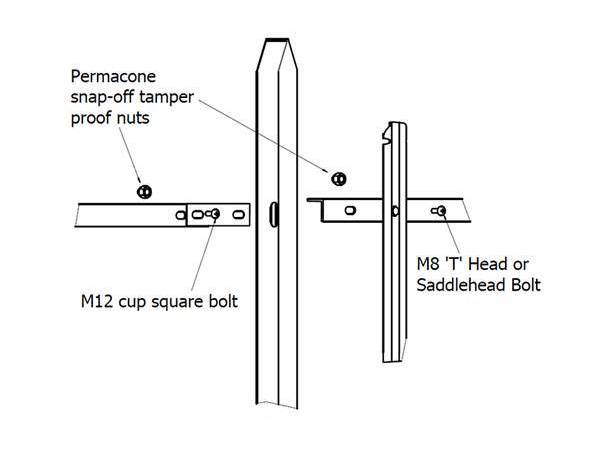

I post connection details

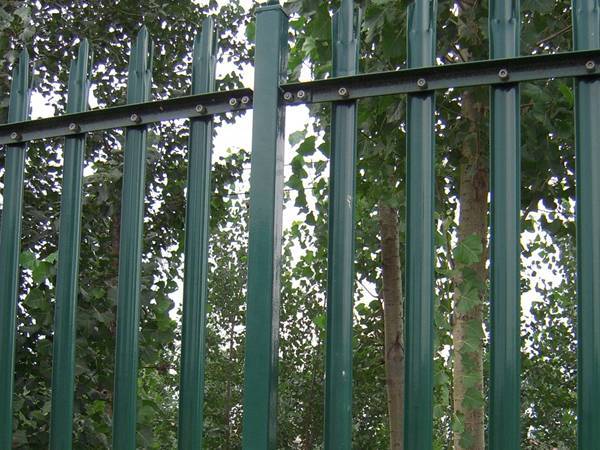

Square post connection

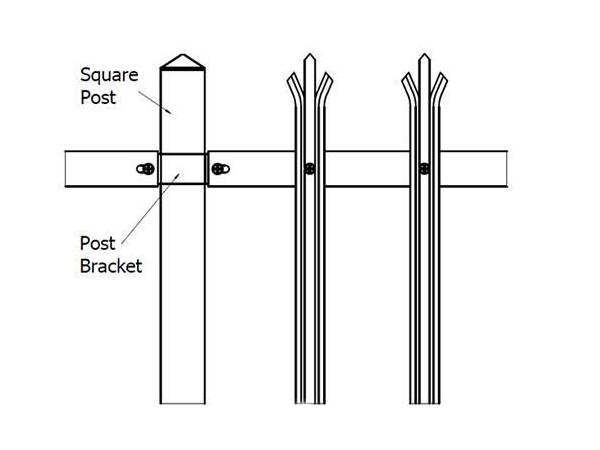

Square post connection details

Signboards

Gallery

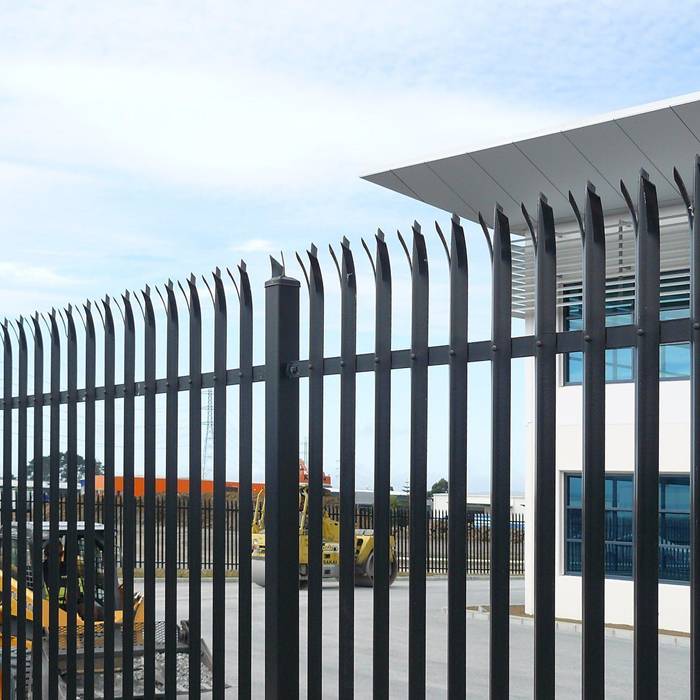

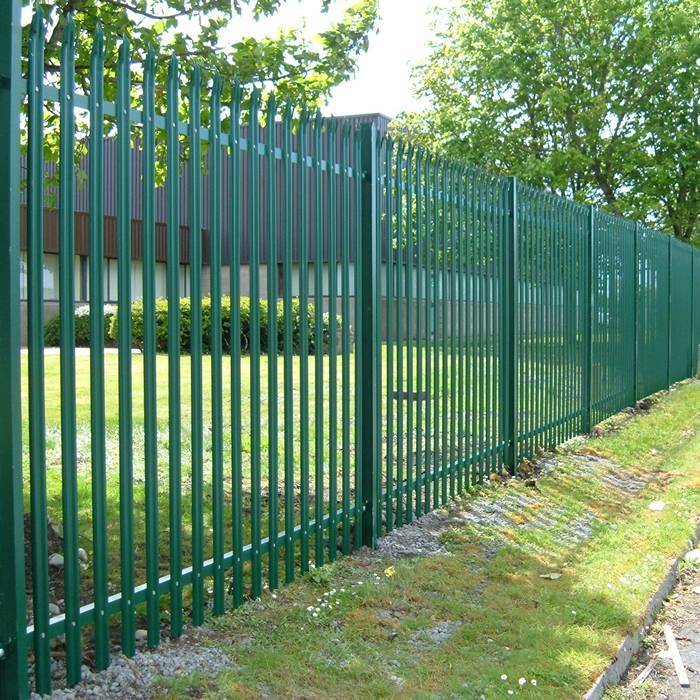

Palisade fencing is designed to provide a high level of security for a wide range of outdoor applications and is widely used in schools, commercial buildings, parks, churches, stadiums, railways, yards, companies, etc.
