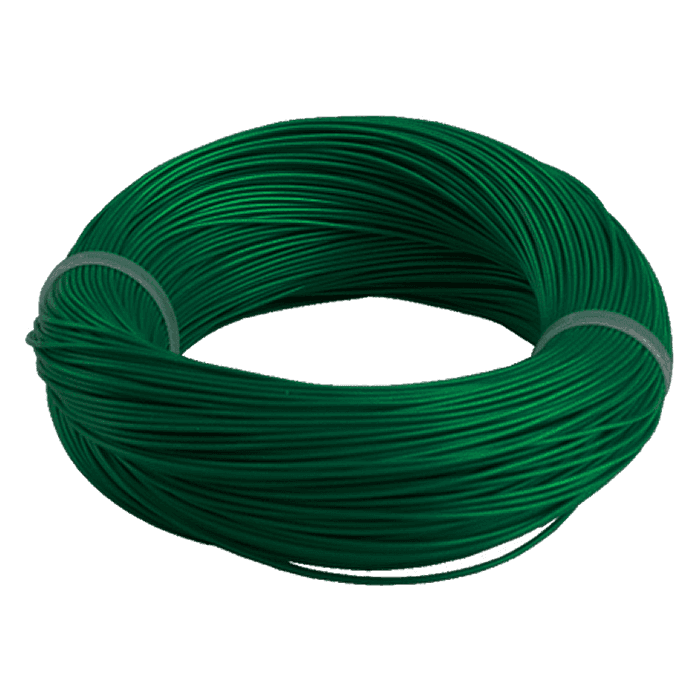

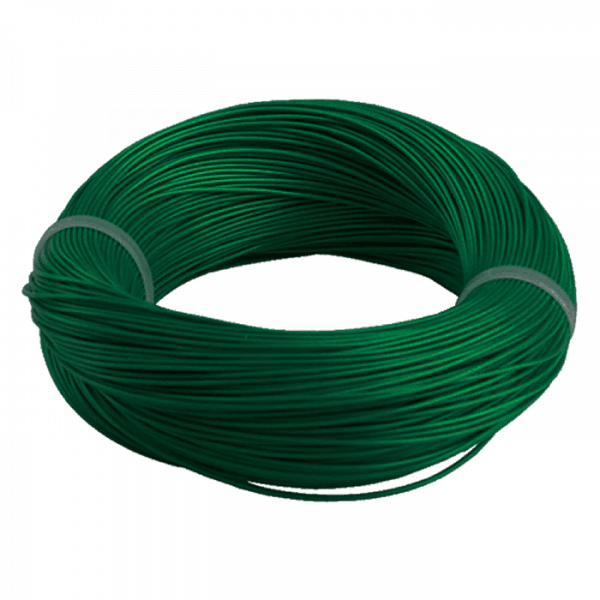

Colourful PVC Coated Wire for Protective Fences in Various Scenes
PVC coated wire can be made by low carbon steel wires or galvanized steel wires. The wires are coated firmly and uniformly with a thick layer of PVC through extrusion, making the PVC coated wire both an attractive wire with colorful and enhancing life span of the wire. The PVC layer is anti-aging, anti-corrosion and UV resistance.

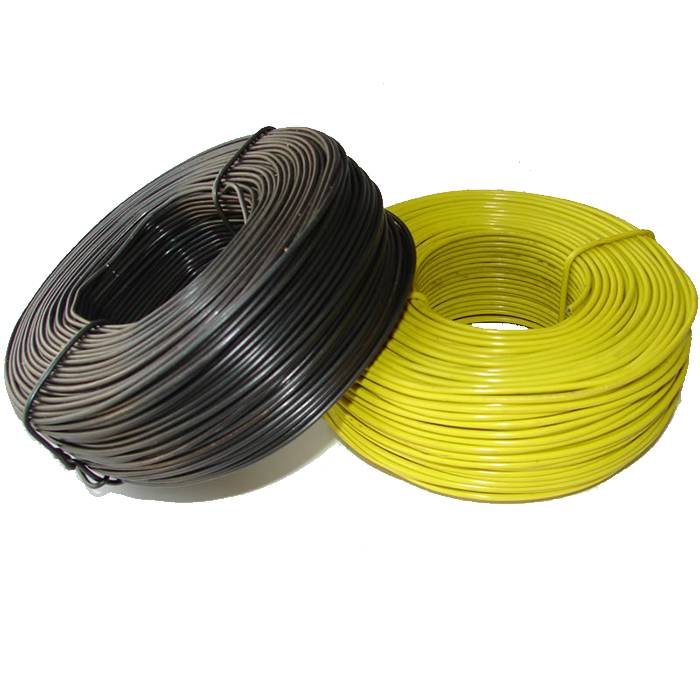

The PVC coated wires are available in various colors, popular colors are green, blue, gray and yellow. Other colors are customized according to customers’ requirements.
The PVC coated wires are mostly used in mesh weaving, it can also be used in agriculture and construction applications.
Description
- Made using improved quality PVC granules that resistance to sun’s UV rays and weather conditions.
- Produced in various different colors.
- PVC quality and flexibility is the ideal property for mesh weaving.
- Core wire can be low carbon steel wire and galvanized steel wire.
- Blend with surrounding environments.
- Can be used in harsh environments.
Specification
- Material: low carbon steel wire or galvanized steel wire.
- Coating material: UV resistance PVC granules.
- Core wire diameter: 0.6–4.0 mm (BWG 23 to BWG 8)
- Outside diameter: 0.9–5.0 mm (BWG 20 to BWG 7)
- PVC coating: the lowest coating 0.3 mm.
- Wire color: green, blue, gray, yellow and other customized colors.
| Core Wire Diameter (mm) | Outside Wire Diameter (mm) |
|---|---|
| 0.6 | 0.9 |
| 0.8 | 1.2 |
| 1.0 | 1.4 |
| 1.4 | 2.0 |
| 2.0 | 3.0 |
| 2.5 | 3.5 |
| 3.0 | 4.0 |
| 4.0 | 5.0 |
Production
Production Flow Chart

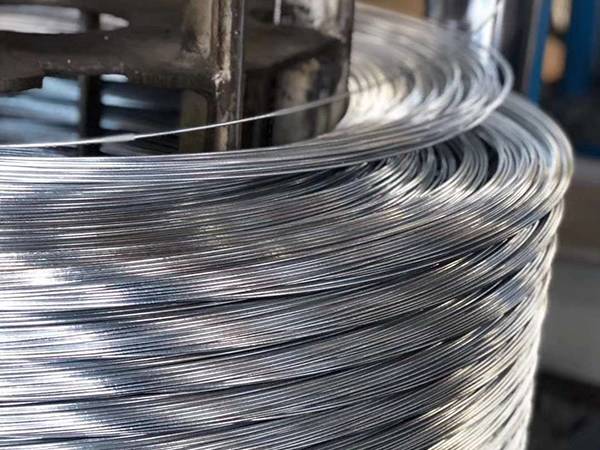

Step 1
Galvanized wire material

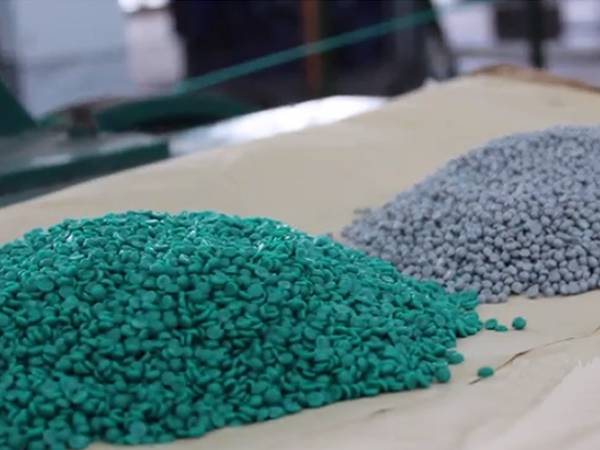

Step 2
PVC granules material

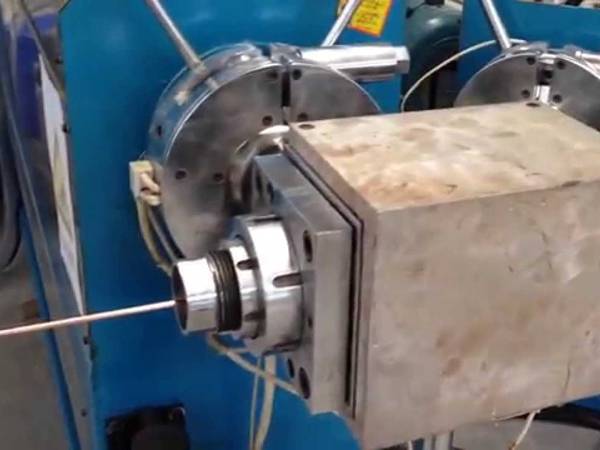

Step 3
Producing
Step 4

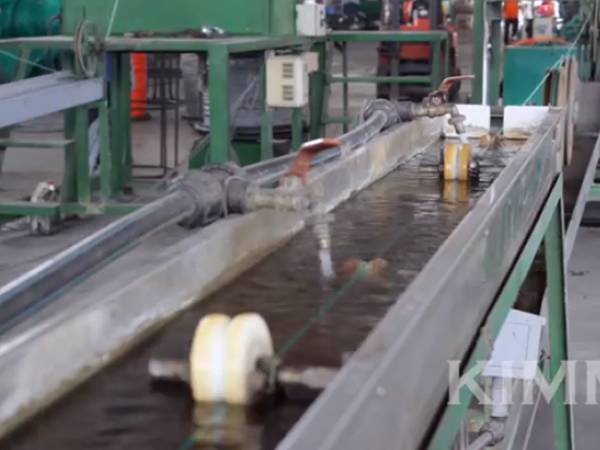

Cooling

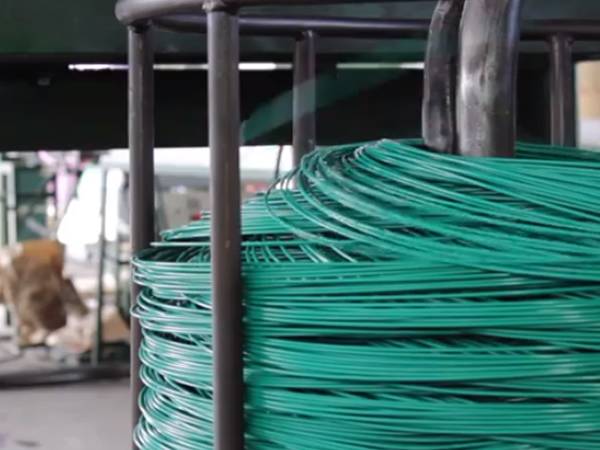

Step 5
Finished
Gallery

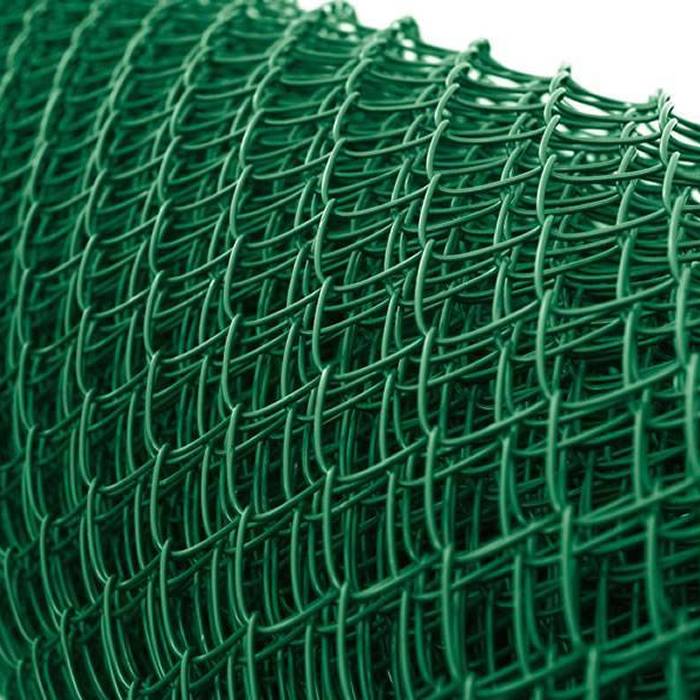

- PVC coated wires are widely used for weaving meshes and fences, such as chain link fence, gabions and chicken wires.
- PVC coated wires are used in wire hanger or handicraft production.
- It can also be used in daily life binding and industrial tying.
