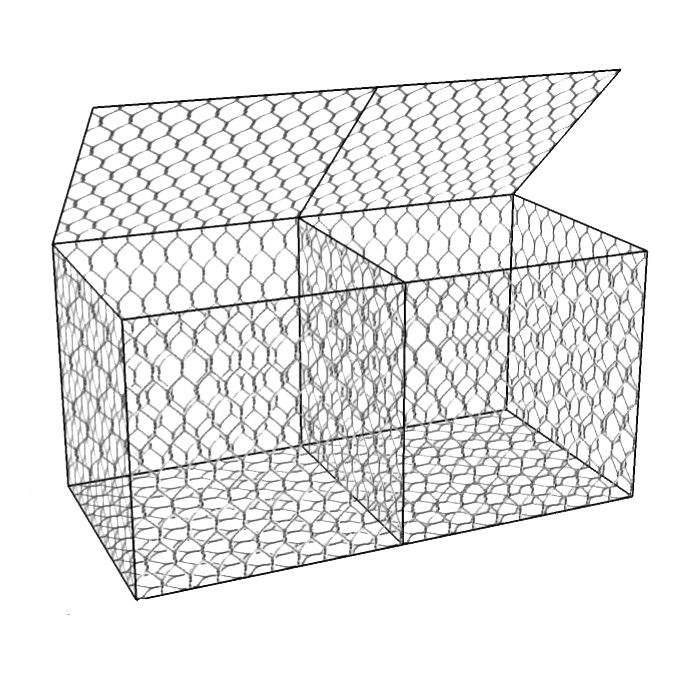

Woven Gabions – Ideal for Construction and Protection
Woven gabions, refers to rectangular shaped containers woven by galvanized, PVC coated or Galfan steel wires, are widely used in the civil engineering industry, especially in the construction where the soil erosion or scour is serious.
The woven gabions are commonly used with geotextiles to reduce water velocities and re-capture river bed sediment in streams.
The woven gabions can be filled with soils or stones for stability and durable life.
The production of double twisted gabions with heavy zinc coating are accord with EN 10244 and ASTM A641 standard and the PVC coating requirements are accord with the ASTM A 975 standard.
Description
- Robust & flexible structure
Woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses. In addition, they accommodate different settlements such as unstable soil conditions or areas where the going gets rough. Meanwhile, all their edges are reinforced by heavy wire selvedge for added strength. - Excellent permeability.
Woven gabion baskets feature excellent permeability of the front face, which allows for great drainage of backfill to dissipate hydrostatic pressure forced upon the gabion wall. - High versatility.
Woven gabion baskets can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance. - Long lifespan.
All of our woven gabion baskets are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our products can last up to 120 years based on different exposure conditions.
Specification
- Materials: galvanized wires, Galfan wires, PVC coated wires.
- Colors: common is green and gray and any color is available upon your request.
- Opening: 60 × 80 mm, 80 × 100 mm and other customized sizes.
- Gabion sizes: 2 × 1 × 1 m, 1 × 1 × 1 m, 3 × 1 × 1 m and customized sizes.
| Gabion box/Mattress Size | Wire Diameter | Mesh opening | Diaphragm (unit) | Number of Cells | ||||
|---|---|---|---|---|---|---|---|---|
| length (m) | Width (m) | Height (m) | Mesh Wire (mm) | Selvage Wire (mm) | Tie Wire (mm) | |||
| 2.0 | 1.0 | 0.15–0.3 | 2.0 2.2 2.4 2.7 3.0 | 2.4 2.7 3.0 3.4 3.9 | 2.0 2.0 2.0 2.2 2.4 | 60 × 80 80 × 100 80 × 120 100 × 120 100 × 150 120 × 150 | 1 | 2 |
| 3.0 | 1.0 | 0.15–0.3 | 2 | 3 | ||||
| 4.0 | 1.0 | 0.15–0.3 | 3 | 4 | ||||
| 1.0 | 1.0 | 0.5 | 0 | 1 | ||||
| 1.0 | 1.0 | 1.0 | 0 | 1 | ||||
| 2.0 | 1.0 | 0.5 | 1 | 2 | ||||
| 2.0 | 1.0 | 1.0 | 1 | 2 | ||||
| 3.0 | 1.0 | 1.0 | 2 | 3 | ||||
| 3.0 | 1.0 | 0.5 | 2 | 3 | ||||
| 4.0 | 1.0 | 1.0 | 3 | 4 | ||||
| The quantity of tie wire: 2% weight of gabion box All sizes can customized according to your request | ||||||||
Category

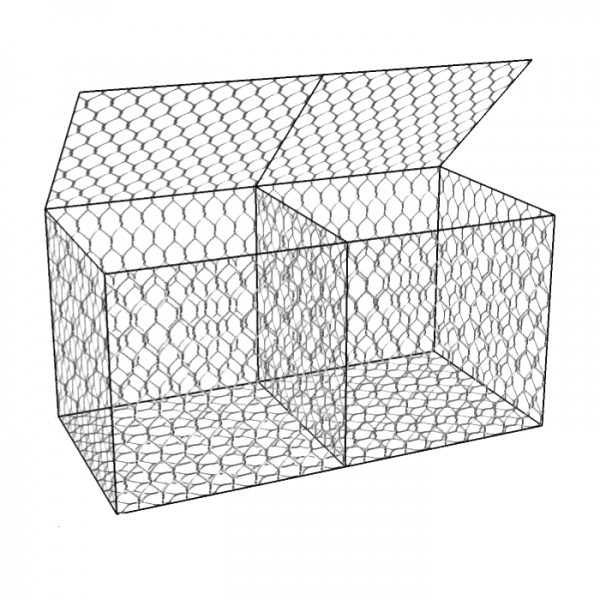

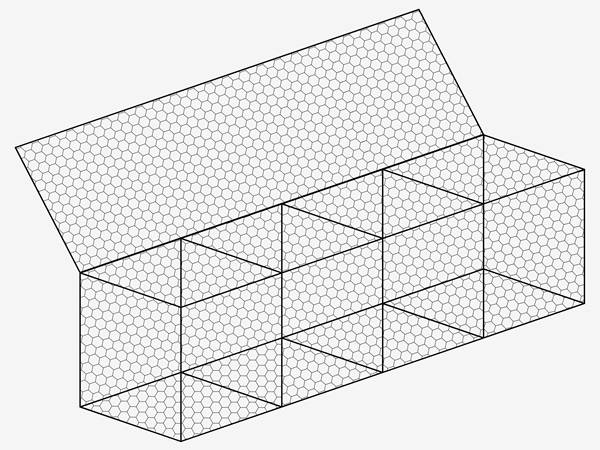

Gabion Box

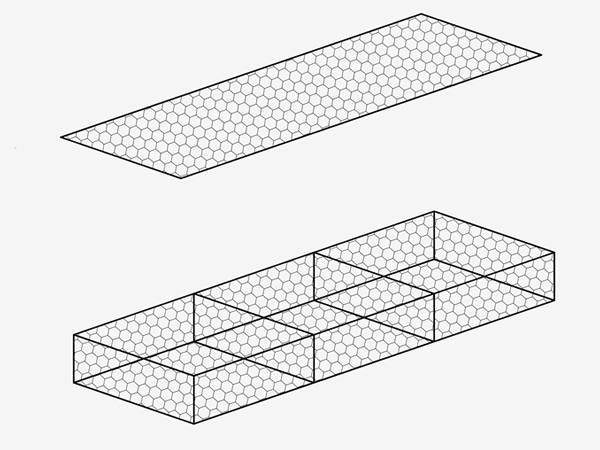

Gabion Mattress

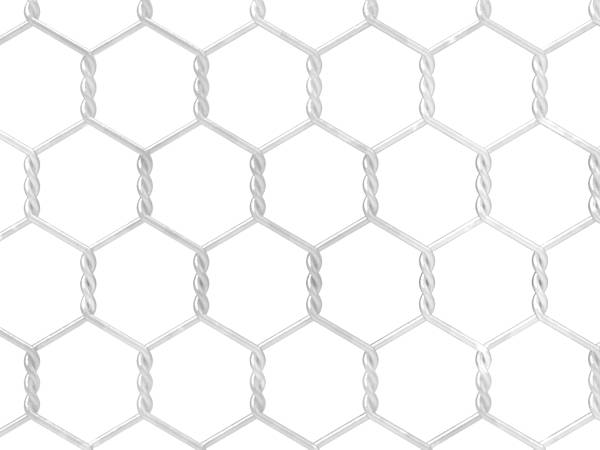

Galvanized woven gabions

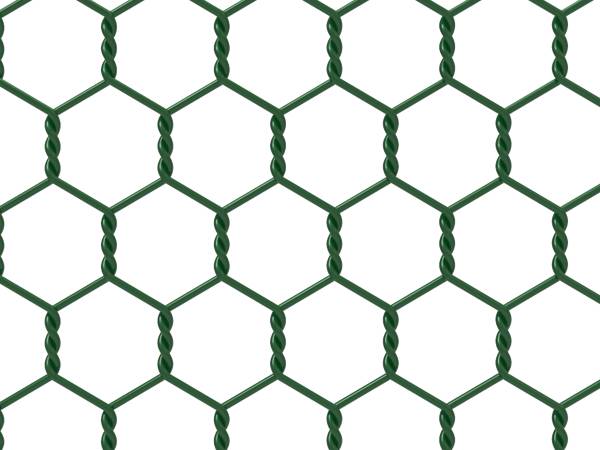

PVC coated woven gabions
Gallery

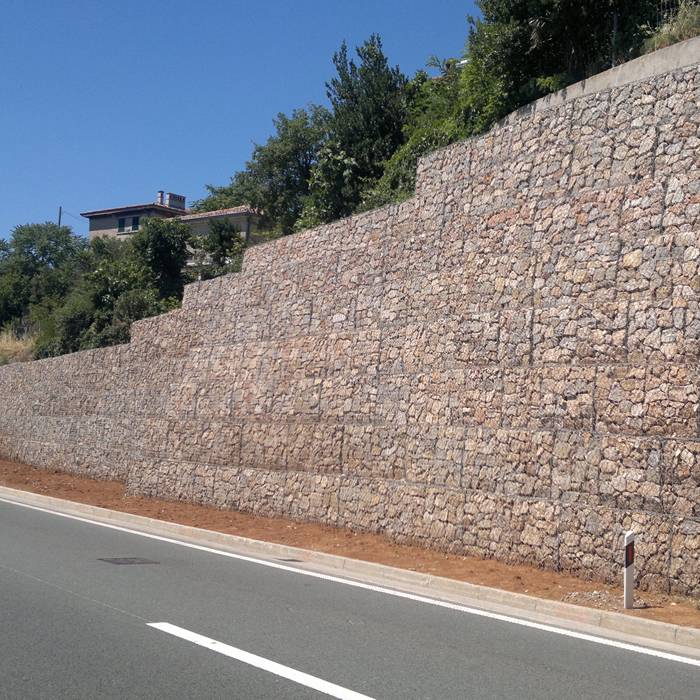

- Gabion retaining wall
- Desert gabion
- Gabion Channel linings
- Rockfall protection

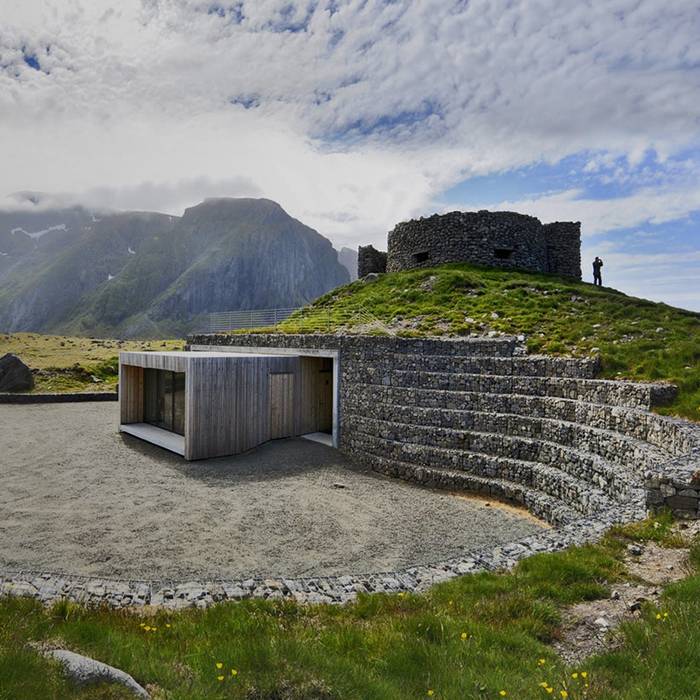

- Gabion landscaping
- drainage
- Gabion bank
- Roadway and bridge protection.
- Erosion protection.
- Slope paving and weirs.
- Earth reinforcing structures.
- Hydraulic structures.
- Outfall structures.
- Coastal embankment works.
- Dams and culverts.
- Stream, river and canal training works.
